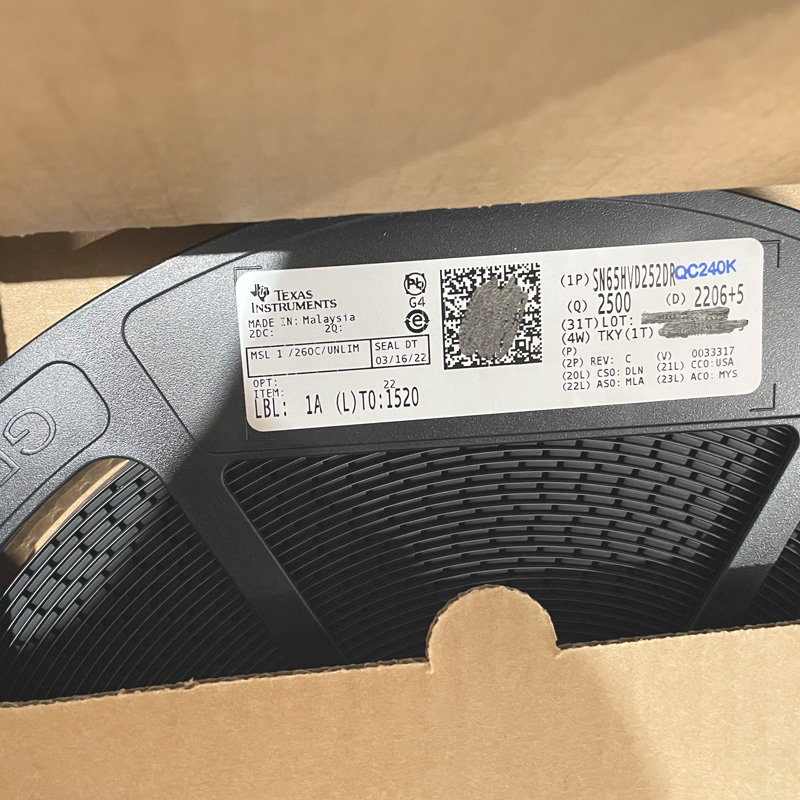

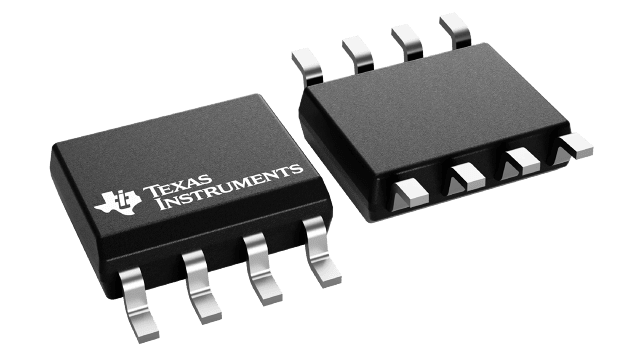

SN65HVD252DR 德州仪器 TI 集成电路

• DeviceNet Compliant Supporting 64 DeviceNet Nodes

• Loopback Function (HVD253)

• Bus-Fault Protection of –36 V to 40 V

• Power-Up/Down Glitch-Free Bus I/O

• 3.3-V Compatible Receiver Output

• APPLICATIONS

• DeviceNet Networks (Vendor ID # 806)

• Industrial Automation

• HVAC Networks

• Security Systems

• Telecom Base Station Status and Control

• CANopen Data Bus

• SDS Data Bus

• CAN Kingdom Data Bus

The SN65HVD252 and SN65HVD253 CAN transceivers meet or exceed the specifications of DeviceNet and are compatible to the ISO 11898-2:2003 standard for use in applications employing a controller area network (CAN). This device provides differential transmit and receive capability at signaling rates up to 1 megabit per second (Mbps).

Designed for operation in harsh industrial environments, these devices feature bus-pin voltage protection from –36 V to 40 V, driver output current limiting, and overtemperature driver shutdown.

Pin 8 provides for two different modes of operation: normal and silent mode. The normal mode of operation is selected by connecting S (pin 8) to ground. If a high logic level is applied to the S pin, the device enters a listen-only silent mode during which the driver is inactive while the receiver remains fully functional.

The Vref pin 5 of the SN65HVD252 is a VCC/2 voltage reference for systems which use split termination.

The AB pin of the SN65HVD253 implements a listen-only loopback feature which allows the local node controller to synchronize its baud rate with that of the CAN bus. In loopback mode, the driver differential outputs are placed in high-impedance state while the receiver bus inputs remain active. For more information on the loopback mode, see the Application Information section.

The SN65HVD252 and SN65HVD253 are characterized for operation from –40°C to 85°C
